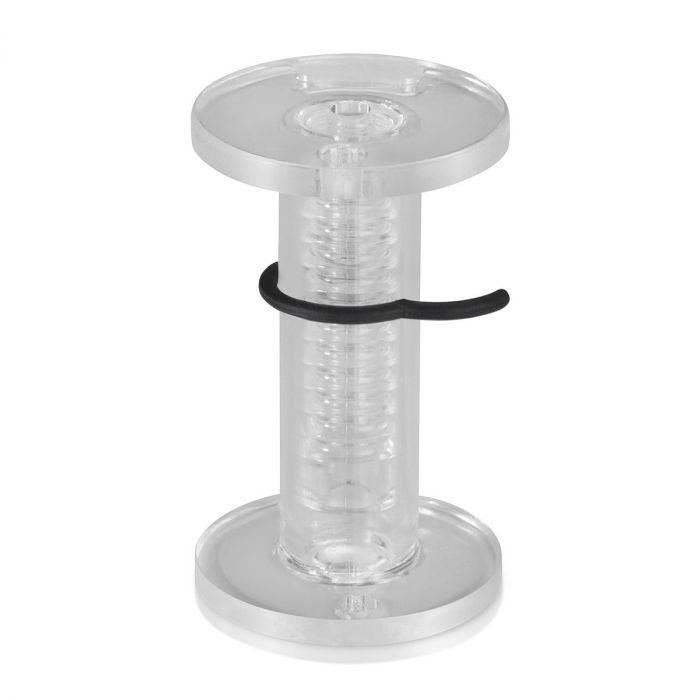

Goliath 2 65-85mm Letter standoffs
Goliath II. The adjustable heavyweight. Simple to take apart (e.g. for the neon behind the letter). Excellent resistance to UV. Standard: EN 50107 Fire class: V-2 UL 94 temp. 122 oC at 1.8 Mpa.
Order more, pay less! Order now:
- Price per pieceExcl. Tax
-
€3.55 Excl. Tax€4.30 Incl. Tax
-
€3.19 Excl. Tax€3.86 Incl. Tax-10%
-
€3.02 Excl. Tax€3.65 Incl. Tax-15%
-
€2.84 Excl. Tax€3.44 Incl. Tax-20%
For sale in increments of 1 pieces.
€3.55
Excl. Tax
0,
15.5.
Delivery time 1-3 days
Excl. Tax
Incl. Tax
In stock
High quantities?
Request a quote
Ordered before 2.30pm, shipped on the same working dayAlways in stockOwn warehouse in the NetherlandsYour sign supplier since 1986Description
The data provided here are basic data. The exact loads per spacer are very much dependent on the situation on site. You should also take into account that ALL plastics undergo an aging process and are UV sensitive, the Goliath spacers are excellently resistant to UV. To correct irregularities in the dimensions and not to cause unnecessary tension, you should screw the female part "hand-tight" to the wall.
1. We recommend stainless steel pan head/cylinder head screws (screw 3mm for male part and 4.5mm for the female part).
2. Turn the screws hand-tight, then a quarter turn back.
3. Use at least 1 spacer per 20-40 cm (depending on the font size and weights).
4. Use our Rody-Rapid-Kleber (superglue - LOS2550) to glue to plastic. 5. Use Rody-Power-Bond (2-component adhesive - LOS2555) for bonding to metal and composite materials.
6. Very easy assembly and disassembly of the lettering. The Goliath spacers have been developed for heavy and/or large facade lettering. Because the Goliath is variable in length, sheet piles or offset parts are no problem. Also suitable for foamed PVC, wooden and/or metal lettering.
STANDARD: EN 50107 Fire class: V-2 UL 94 temp. 122 C a 1.8 MPa Ropro-Europe accepts no responsibility for this data.
Specifications
| Article number | GL2098TR |
|---|---|
| Base material | Polycarbonate |
| Color | Transparent |
| Outside Diameter (mm) | 40 |
| Usage | Outside and inside |
| Material | Plastic |
| gtin (EAN) | 7433606094006 |
FAQ
FAQ
What is this spacer used for?
It’s a heavy-duty, adjustable spacer designed to mount letters and keep them neatly offset from the wall. It’s also handy when you want room for lighting behind the letters.
Is it suitable for outdoor signage?
Yes, it offers excellent UV resistance, which helps it perform well in outdoor conditions. It’s a solid choice for long-term signage installations.
How do I access the wiring or neon behind the letters?
The spacer is designed to be easy to take apart, so you can reach the space behind the letter without a full re-install. That makes service and upgrades a lot quicker.
What diameter does the spacer have?
The outer diameter is 40 mm. This gives a stable, sturdy base for mounting heavier letter constructions.
Does it meet any safety or fire standards?
It’s listed with EN 50107 and has fire class V-2 according to UL 94. That helps support safer use in professional sign applications.
Can I adjust the stand-off distance after mounting?
Yes, it’s an adjustable model, so you can fine-tune the spacing during installation. This helps you align letters cleanly and consistently across the wall.
What mounting hole size do I need?
The required hole size depends on your specific setup and fixing method. If you share your mounting plan, you can match the correct drilling and hardware accordingly.
Is this spacer compatible with illuminated letters?
Yes, it’s commonly used for letters with lighting behind them, because it creates a practical cavity for cables and light output. It’s also easy to open for maintenance later on.
How do I clean and maintain it?
Wipe it with a soft cloth and a mild, non-abrasive cleaner to keep the finish looking neat. Regular checks of the fixings are recommended for professional installations.
What are the main benefits for installers?
You get a stable, heavyweight spacer with easy access for service work and clean alignment thanks to the adjustable design. It’s a practical time-saver on both install and maintenance jobs.
Disclaimer: This product information is subject to errors and changes. No rights can be derived from the content.
